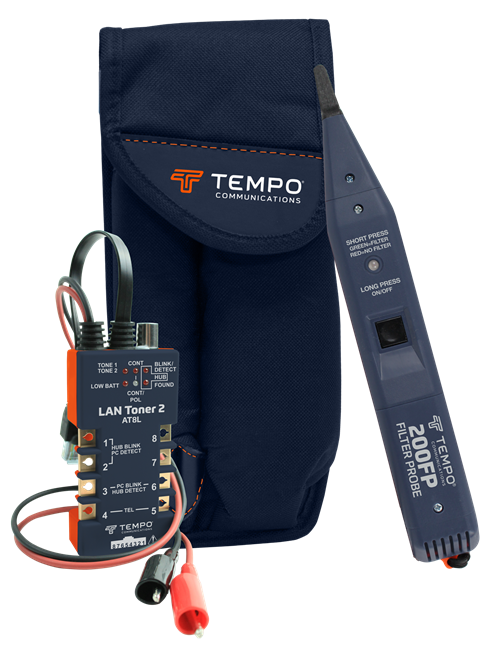

Tempo 802K - Digital LAN Toner / Probe Wire Tracer Kit w/Case

10/100 Base-T, PC & HUB Digitally Friendly!

Alternative Views:

PLEASE NOTE: The product title and description supersede the image shown, items may vary from picture. The picture provided by the manufacturer is not always exact. Manufacturer's change product design and pricing without prior notice. We may use various and other image sizes for multiple sizes of an item.

List Price: $269.97

HB Price: $232.97

Savings: $37.00

HB Product Number: TEM-802K

Qty:

Description

Technical Specs

Notes & Safety Warnings

Tempo Communications' 802K - Digital LAN Tracing Kit is a powerful, unique troubleshooting and tracing solution for LANs and other types of Voice, Data, Video (VDV) wiring. The industry standard 200XP-G filter Probe (60Hz) is designed to eliminate hum from fluorescent lights and AC power wiring that can obscure tracing tones. The Tempo AT8L LAN Modular Breakout Toner not only generates multiple tracing tones and provides basic wiring tests, but also indicates the presence of 10/100 Base-T Network Service. It can be used to detect LAN hubs and switches and blink HUB, switch port, and PC activity lights for fast identification. The tester also allows for split table tone connections for tracking Cat5/6 LAN cable. Sporting the Tempo logo. American Engineered and Made in the USA to the high-quality Data and Telco standards.

Note:
Compatible with Security/Alarm, Audio and CATV wiring also.

Tempo's 700C - Dual Carrying Case for AT8L - LAN Tone and 200XP-G - Probe. Durable woven polyester Cordura® case. Fits belts up to 3" wide. You have a "D-ring" option to clip to a tool-bag. A hidden pocket on the back to hide some bill$. Sporting the Tempo logo. ed/hb The unit is constructed of durable ABS plastic. Sporting the Tempo logo.

Note:

AT8L + 200XP-G + 700C = 802K w/User Manual
Mfg. Part # 52025322 - Cat # 802K

Features & Benefits:

Tempo AT8L - LAN Tone Generator

The LAN Toner is designed for the network installation and maintenance professional and can be used on any wiring system including datacom, telecom, security/alarm, audio and CATV
Blinks HUB, Switch Port, and PC activity lights for fast identification
Detect LAN hubs & switches
Provides tone signaling, continuity testing and telephone line polarity indication combined with a modular breakout adapter
Selectable tone outputs for identifying multiple cable runs
Includes multiple connection options
Booted Alligator Clips
EZ-to-Read Markings
Battery Operated (9V not included)
Sporting the Tempo logo
Tempo's Orange/Dark Blue

Tempo 200XP-G - Digital Filter Probe

Single-button selects between default mode and two kinds of powerful noise filters
Filtering means faster, more accurate pair tracing
Digital signal processor for accuracy and sensitivity
Audible and visible signal detection
Continuous, wide-range volume control
3.5mm headphone jack
The narrowband filter mode is especially well suited for 577Hz Telco tone sources and a version is available for 1kHz systems (983Hz)
Uses two AA batteries (not included)
EZ-to-Read Markings
Safety Lanyard
Sporting the Tempo logo
Tempo's Orange/Dark Blue

Tempo 700C Dual Carrying Case
