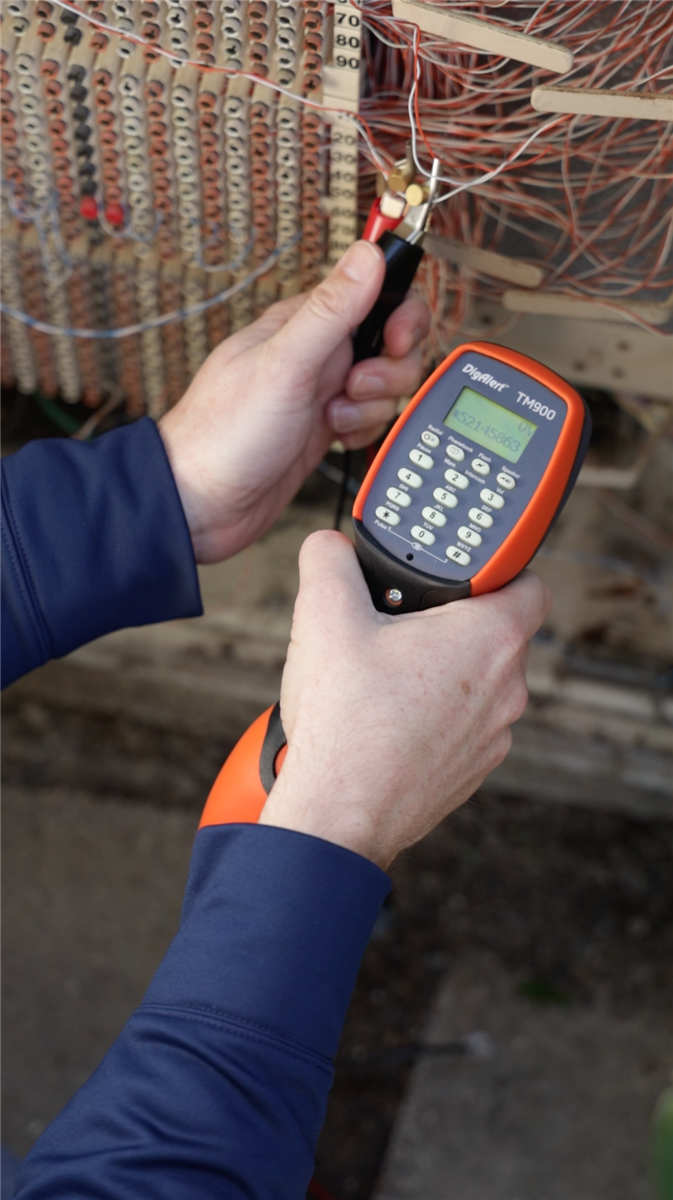

Tempo Communications' TM900 - Tele-Mate® Lineman's Telephone Butt-in (POTS) Set, "ID" DSL Compatible with DigAlert™. Whether installing, servicing, or maintaining voice service and data on copper lines, you’ll want the newest member of the Nautilus telephone test set family at your side. The TM900 offers a new LCD screen display showing “caller ID” and related features, plus a comprehensive phone book including 10-number “last number redial”, direct display of line voltage, loop current, ringing frequency, and the ability to receive DTMF strings. All while still offering protection of digital traffic and hands-free speakerphone functionality, plus much more. With this innovative design, Tempo continues investment in “butt-in” test set technology, setting new, unmatched standards in both quality and customer satisfaction.
The TM900 butt set gives meaning to the term "weatherproof": This award-winning, waterproof case design allows technicians to operate with confidence in even the most extreme weather conditions. Other key advancements include digital service and high-voltage alarm, and a quick-release, non-metallic belt clip composed of glass-filled nylon. This combination of rugged technology enables Tempo to offer the best warranty in the industry – Factory 3 years.

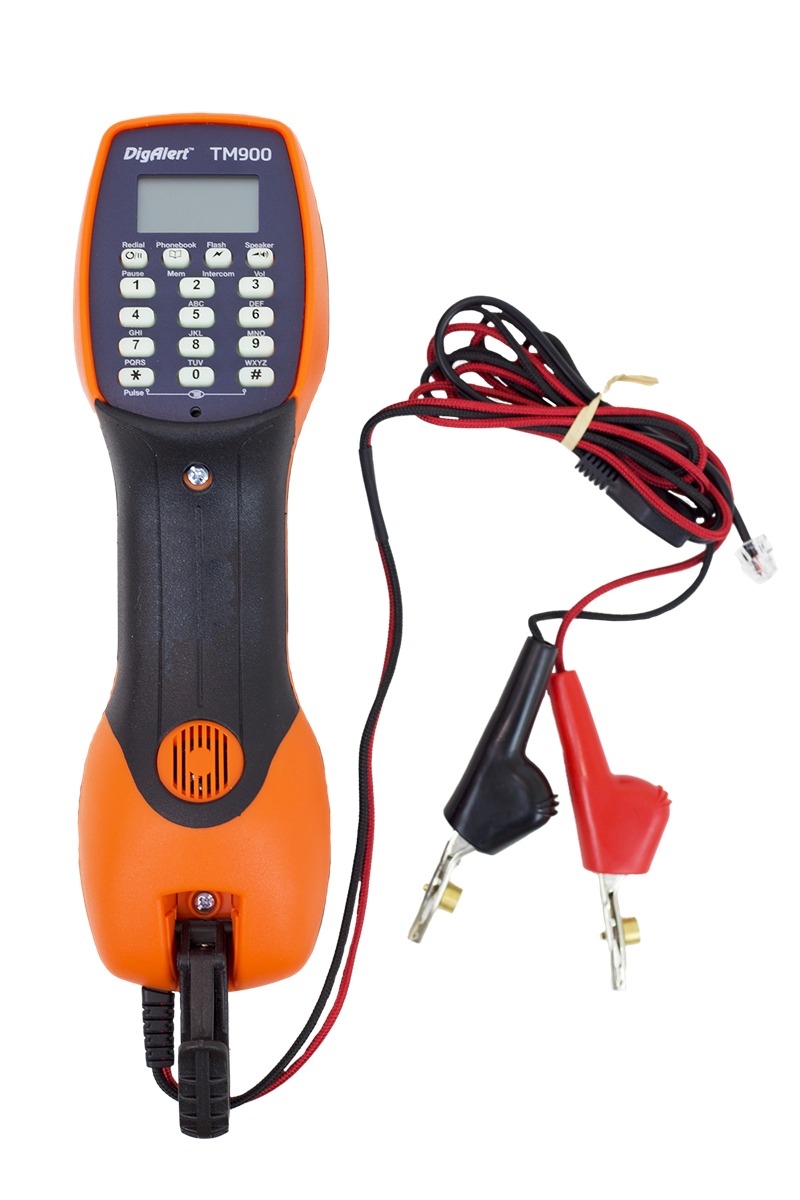

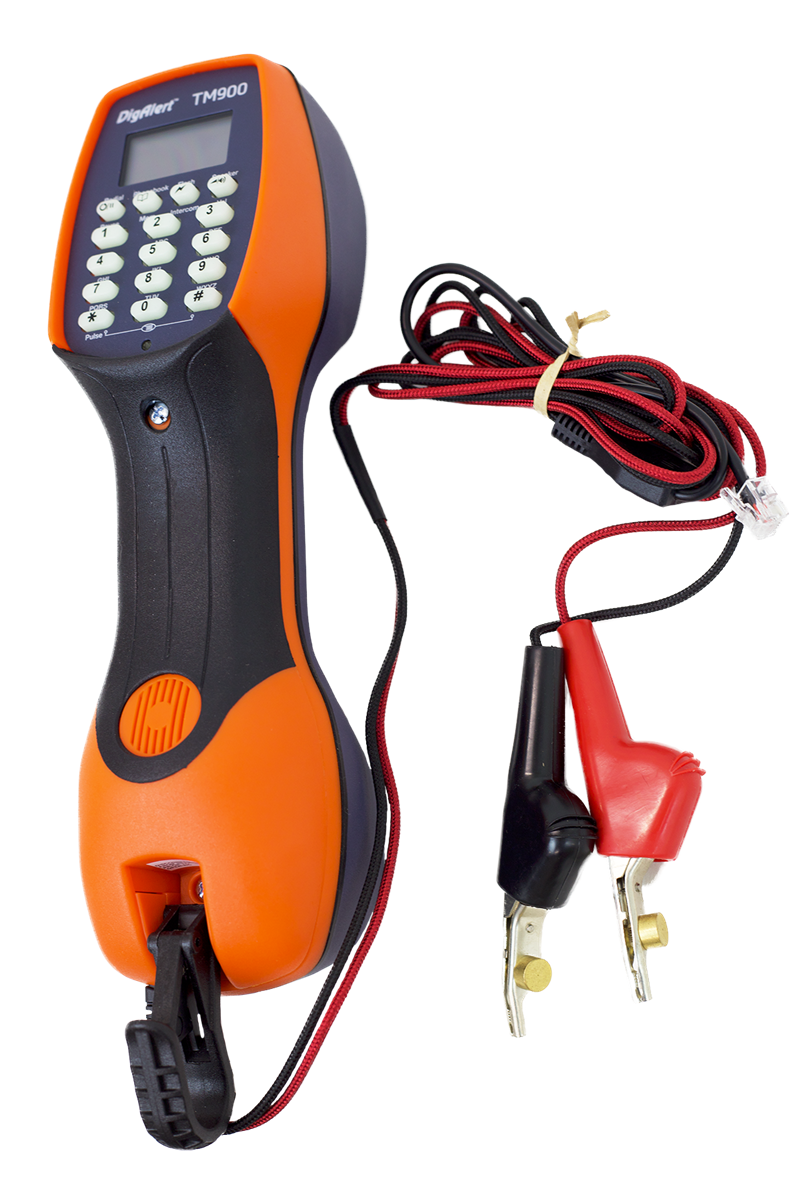

Tangle free cloth Red and Black cords and Booted Angled 66 Clips w/Bed-of-Nails and Piercing Pin (ABN/PP) with vinyl sleeves, Plus RJ11 Plug. Spring-loaded Non-locking black Belt Clip. American Engineered and Made to the high-quality Telco standards. ed/hb
Note:
POTS (Plain old telephone serves)
Tempo® Communications/Tele-Mate®, DigAlert™, SmartIntercom™
Mfg. Part # - Cat # TM900
Attribute Name ------------- Attribute Value
Telephone Compatibility**: TIA / EIA-470-B and ETSI
Loop Limits (at 48 V) Resistance: >5 kΩ Minimum Current: <10 mA
DC Resistance Off Hook: <300Ω Off Hook: <300Ω On Hook: >10 MΩ
Monitor Impedance: >400 kΩ
Pulse Dialing**: Rate: 10 pps or 20 pps Break: 60% or 66% Inter-Digit Pause: 800 ms (leakage during break >1 M)
DTMF/Tone Dialing**: -4 dBm / -6 dBm (ANSI); -9 dBm / -11 dBm (ETSI)
FSK Caller Name/Number (CID) and Call Waiting (CIDCW): Bellcore GR-30-CORE TR-NWT-000030 ETSI FSK Types
LCD: 96 x 48 pixels, 5 lines. Displays the following: Caller ID (name and number) and Call Waiting Dialed Number Over-voltage Conditions Phone Status (monitor, on hook, etc.) Line Voltage: 110 Vdc max Loop Current: 125 mA max Ring Frequency: 15–70 Hz
Memory Dialing: 10 Memories 10 LNR each holding 30 digits including pauses
Flash/Timed Break Recall**: 100 ms 270 ms 600 ms
Line Protection - Over-voltage: 360 Vdc Continuous >500 V Peak Current Limited: 125 mA Lightning: ITU K.17, 20, 21 (1500 V)
Intercom Range: 6 km
Toner Output: 7 V pk-pk (square wave), two warble rates
Battery Life: 1 x 9V. Alkaline recommended. Will last 6 months with typical use.
Humidity: Operating: Up to 90% Storage: Up to 95%
Operating Temperature: 32°F to 122°F (0°C to 50°C) LCD, -29°F to 140°F (-34°C to 60°C)
Storage Temperature: -58°F to 167°F (-50°C to 75°C)
Note:
Detection and Lockout of Data Services: T-1, E1, ISDN (BRI and PRI), SW56, xADSL, VDSL, HDSL
POTS (Plain old telephone serves)
Tempo® Communications/Tele-Mate®, DigAlert™, SmartIntercom™
Mfg. Part # - Cat # TM900
|
|
|
 |
|
 |
|
|
|
 |
|
 |
|
Features & Benefits:
- Award Winning Waterproof Design (IP67)
- Works dial tone on DSL Lines
- Safe Around Digital Services - DigAlert™ data and overvoltage protection w/Alarm
- Caller ID and Call Waiting Tests
- DTMF Recieve
- Pair ID Tone Generator
- Duplex Hands-Free "Speakerphone" w/Volume Control
- EZ-to-use Talk and Monitor Keys w/Microphone Mute
- Dead Pair Intercom Modes
- 10 x 32-digit Speed Dial Memory
- 10 x 32-digit “Last Number Redial”
- Caller ID & Call Waiting functions
- Audible and Visual Mode Indicators
- Display of Polarity, Voltage, Current, and Ringing Frequency
- Tangle free cloth Red and Black cords and Booted Angled 66 Clips w/Bed-of-Nails and Piercing Pin (ABN/PP), Plus RJ11 Plug
- Spring-loaded Non-locking Black Belt Clip
- Sporting the Tempo logo
- Tempo's Orange
Ergonomic
Designed for comfortable shoulder placement. Operate in either hand, clip onto the belt, or use hands-free.

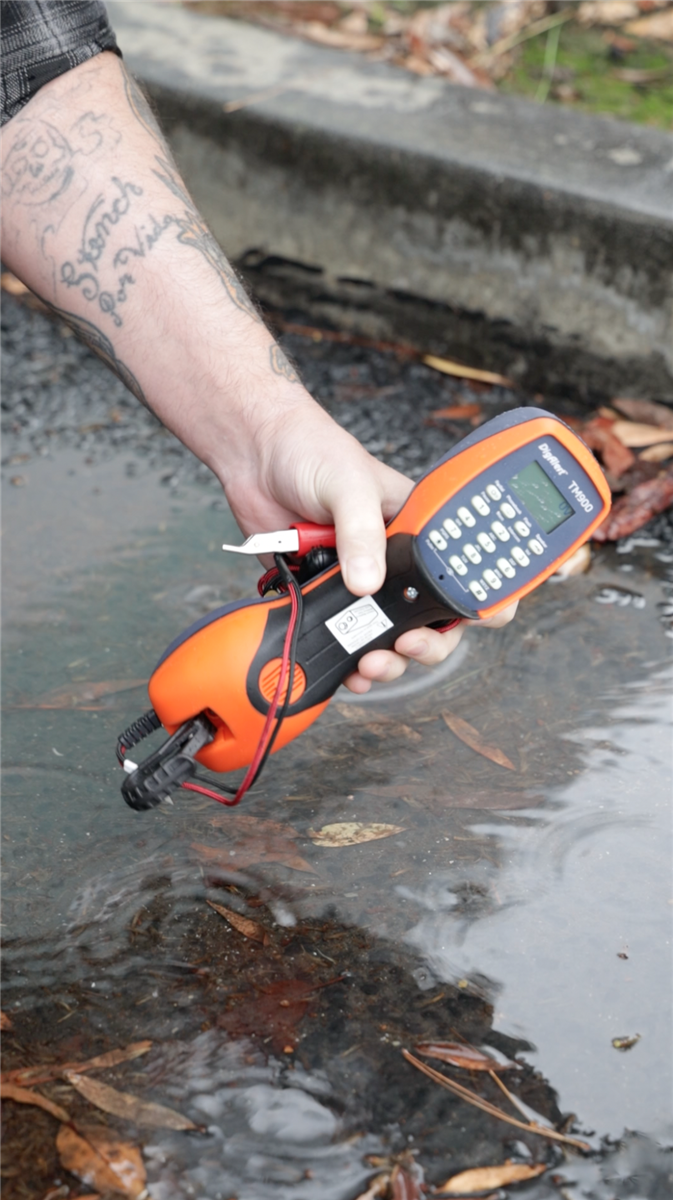

Rugged & Weather Resistant
IP67 is water and dust resistant. Tough enough to withstand the working environment.

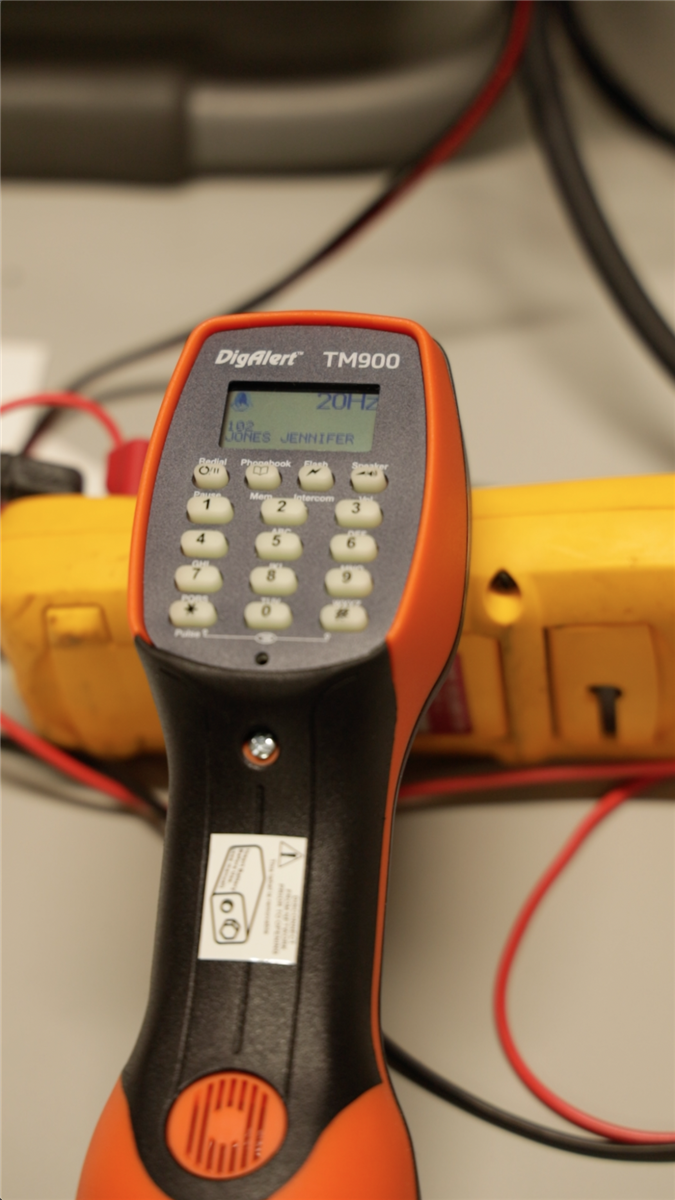

LCD
Immediate access to caller ID and memories, measurement of on-hook voltage, off-hook current, and ringing frequency.
DTMF Digit Recognition
Ensures auto-dialing to the correct number. DTMF power is indicated in dBm to ensure that line conditions are good.
DSL Filter
High impedance design ensures maximum digital line compatibility in both monitor and talk modes.
DigAlert™
Detect and protect digital services and warns the user and protects itself from high voltages and currents.
SmartIntercom™
Allows alerting over a “dead” pair of wires. When a call is requested from one unit, the other unit wakes up, validates the request, and acknowledges it with a unique tone.
Intercom
Talk over a “dead” pair of wires.
Toner
A built-in pair tracing toner is provided. The frequencies chosen are optimized for use with Tempo probes, or any other probe that works in the telephone audio frequency range.
Handsfree / Loudspeaker
Convenient duplex speaker phone function plus loudspeaker monitoring.
Photo-Luminescent Keymat
Advanced silicone rubber keypad glows after exposure to light, aiding operation in low light conditions.
|
|
|
|
|
|
