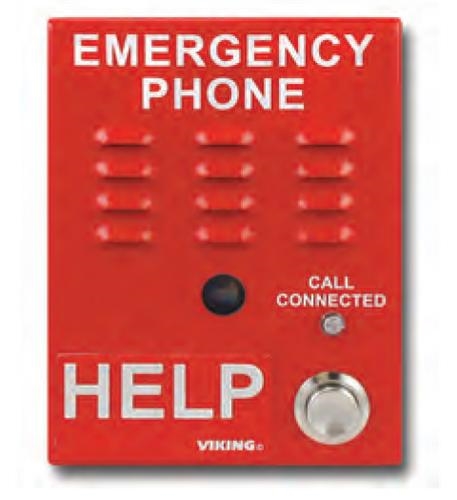

Viking Electronics' E-1600A - Red ADA Compliant Emergency Phone is designed to provide quick and reliable handsfree communication for any standard analog telephone line or analog phone system station port. The E-1600A Red emergency phone meets ADA requirements for Elevator / Emergency Telephones / Poolside Telephones etc., and can be programmed from any touch-tone phone. It can dial up to 5 programmable emergency numbers, as well as 2 central station numbers.
The E-1600A can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Additionally, a DTMF touch tone code may also be delivered. A “Call Connected” LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory. The E-1600A-EWP is phone line powered, requiring no batteries or external power and is compatible with common Central Station Monitoring equipment. ed/hb
Please Call for Price
Power: Telephone line powered (24VDC / 20mA minimum)
Dimensions: 5.25″ x 4.0″ x 2.0″ (133mm x 102mm x 51mm)
Operating Temperature: -15°F to 130°F (-26°C to 54°C)
Humidity: up to 100%
Shipping Weight: 2.5 lbs. (1.13 kg)
Material: 16 gauge steel with textured red powder paint
Mounting: Surface mount to walls, posts, single gang boxes, or 4″ x 4″ electrical junction boxes recess mount in elevator phone boxes
Connections: (2) Gel-filled butt connectors
Certifications:
ADA
IP66
FCC Part 68
FCC Part 15
Applications: - Poolside
- Elevators
- Parking ramps / lots
- Emergency pool phones
- ATM machines
- Medical centers
- Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit (see Vikings' support DOD 233)
- Area of refuge locations
- Lobbies
- Entryways
- Campus emergency stations
- Stadiums
- Convention centers
- Public access areas
- Silent hold-up alarm dialer when used with a Viking PB-1 Panic Button Kit (see Vikings' support DOD 233)
|
|
|
