West Industries' 21010-9 - LaserLine™ Kit - Pre Wiring System is a CO₂ Powered Device designed to cover greater distances than ever before when running low voltage cable by propelling a soft rubber tipped dart attached to a nylon pull string. The dart is equipped with a quick release attachment system that doesn't require tying or cutting.
Designed to fulfill the need for a more productive and improved method for the installation process of low-voltage wire, ethernet and coaxial cables. Equipped with a laser sighting device, LaserLine™ will accurately install a pull line up to 120 ft. through most web trusses, across suspended ceiling systems, over hard to move objects, under sub-flooring or in any limited access areas like those found in most offices and commercial building structures.
Once the route has been established, just aim your LaserLine's laser sight at the proposed path for your install, pull the trigger. The CO₂ powered Shooter, shoots a foam dart to put your pull line in place. Simply attach your cable or a pull line if needed, and pull your cables across. Once your cable is in place, supports can be placed (typically at 5-foot intervals) with the point-to-point routes determined and the cable supports in place. Productivity is improved and labor intensity is decreased. American Engineered, Made in USA using US and Global Components, made to high-quality standards. ed/hb
Who needs a LaserLine Kit, Pre-Wiring System: High and Low-Voltage Tech, Electricians, Telephone, Data, Alarm/Security, CCTV/IP-Camera, Antenna, Cable, Dish/Satellite, Automation, Access Control, Home-Theater including CEDIA members, Etc. ed/hb
Come with: 1- LaserLine™ Pull String Shooter w/laser sighting device 2- Darts - Hi-Viz Orange
2- CO₂ Cylinders* 12-gram
1- CO₂ Adapter
2- 1200' Per Pull Line Spools - *String color may vary
3- AG10 Batteries (included)
2- Hex Wrenches of Different Size
2- Instruction Manual - LaserLine™ & Laser
1- Hard Plastic Lockable Carry Case (locks not included)

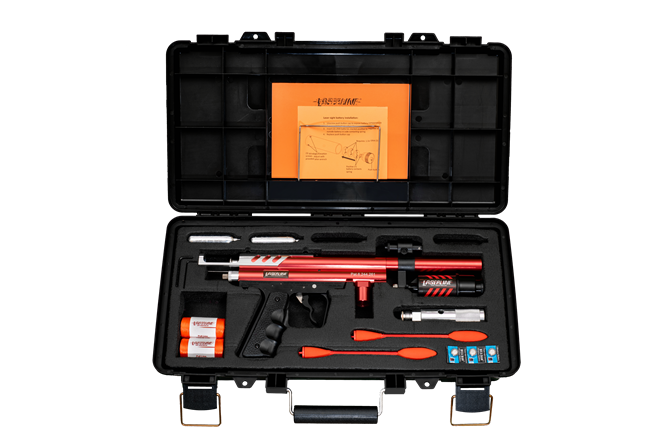

A-K Picture Specifications (Pictures shows eXter supplies not included:
A- Pull Line spools (1200 ft) Space for 3 SpoolsB- Sturdy carrying case with foam insert
C- 12-Gram (Approx. 6-8 Shots) Space for 4 CO₂ Cylinders
E- 12-gram CO₂ adapter
F- Line canister
G- Laser sight (uses 3-LR44 type batteries)
H- Thread will also accept paint ball type CO₂ tanks
I- LaserLine™ Gun
J- Velocity Adjustment, Increase or decrease
K- Instruction Manual
Specifications:
Machined from high quality aircraft aluminum
Anodized finish
Laser sight for accuracy
Firing Distance: up to 120'
CO₂ yields approximately 6-8 shots
Pull Line: 17lb. nylon bulk line (1200ft. per spool)
Darts constructed from durable lightweight nylon with soft foam tip
Measurements:
Compact sturdy carrying case 20.5 x 11.0 x 4.0"
Shooter: 16.5"
HB TIP:
Instead of using CO₂ Cylinders
An option is to use a refillable CO₂ Compressed Air Tank (similar to the one used with paintball guns)
*Note: CO₂ Cartridges are not air shipable (Next Day, 2nd Day Air, 3 Day). They cannot be shipped outside of the USA either. For International Orders and eXpedited shipping within the USA, the CO₂ cartridges will be removed.
Orders shipping UPS Ground will ship with the CO2 cartridges included.
LaserLine™ is a registered trademark of West Industries, Inc. All Trademarks Belong to Their Respective Companies.
WARNINGS!
Always wear safety gloves.
Always ensure that you and persons in the vicinity wear approved eye protection.
Safety Info:
California proposition 65 warning - www.P65Warnings.ca.gov
|
|
|
