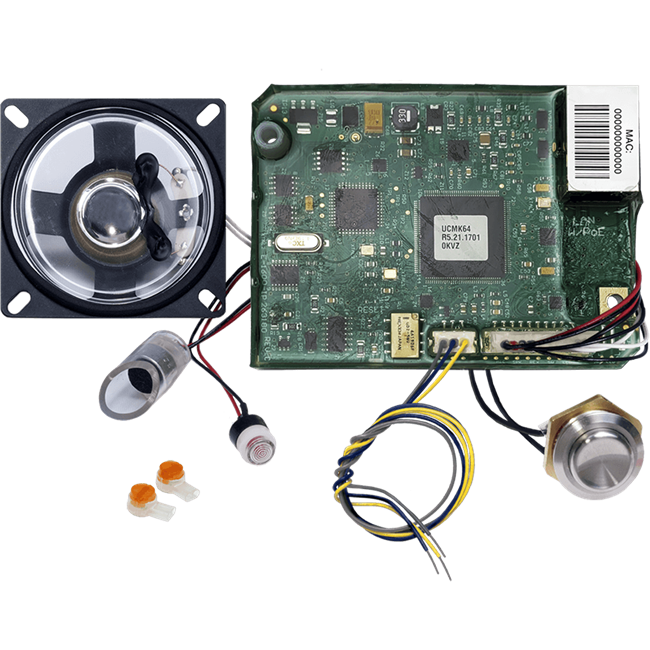

Viking E-1600-50-IPEWP - VoIP Emergency Phone Parts Kit w/Enhanced Weather Protection

Special Order - No Returns

PLEASE NOTE: The product title and description supersede the image shown, items may vary from picture. The picture provided by the manufacturer is not always exact. Manufacturer's change product design and pricing without prior notice. We may subsist image for multiple sizes of an item.

HB Product Number: VIK-E-1600-50-IPEWP

Please - Call for Price and Availability

Description

Technical Specs

Notes & Safety Warnings

Viking Electronics' E-1600-50-IPEWP - ADA and CE Compliant VoIP Emergency Phone Parts Kit is designed to provide quick and reliable hands-free communication for SIP VoIP phone systems with PoE. The E-1600-50-IPEWP is designed to be installed behind a custom panel of your design, and meets ADA requirements for elevator / emergency telephones, and can be programmed from any touch tone phone, PC on the same LAN, or remotely using a static IP address. The phones can dial up to 5 programmable emergency numbers.

The E-1600-50-IPEWP phone can be programmed to automatically deliver a digital announcement to identify the location of the emergency call. Alternatively, a DTMF touch tone code may also be delivered. A "Call Connected" LED can be initiated manually or automatically. All programming parameters, including phone numbers and location numbers, are stored in non-volatile memory, requiring no batteries. This unit is PoE powered.

The E-1600-50-IPEWP is equipped with Enhanced Weather Protection (EWP), ideal for outdoor installations where the unit is eXposed to precipitation or condensation. EWP products are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim pots and DIP switches for EZ-on-site programming. For more information on EWP, (see Vikings' support DOD 859). ed/hb

Applications:
Elevators
Parking ramps / lots
Emergency pool phones
ATM machines
Medical centers
Silent hold-up alarm dialer when used w/a Viking PB-1 Panic Button Kit (see Vikings' support DOD 233)
Area of refuge locations
Lobbies
Entryways
Campus emergency stations
Stadiums
Convention centers
Public access areas

Please - Call for Price and Availability

Features & Benefits:

Automatic polling and programming software included
2 Amp relay contacts to control an SL-2 Strobe Light (see Vikings' support DOD 242) or LV-1K Line Verification Panel (see Vikings' support DOD 246)
Red “Call Connected” LED indicator
SIP compliant (see Product Manual for list of compatible IP-PBX phone systems)
PoE powered (class 1, <4 Watts)
Automatic Noise Canceling (ANC) feature for proper operation in noisy environments
VoIP audio detection eliminates the need for "Push to Talk" mode
Network downloadable firmware
Hands-free operation
Non-volatile digital voice announcer with 28 seconds of voice memory
Programmable to dial up to 5 numbers
Cycles through backup phone numbers on busy or ring-no-answer
Hangs up on busy signal, time-out or touch tone command
Remotely programmable
Diagnostics for testing mic, speaker, relay
eXtended temperature range: -40°F to 140°F (-40°C to 60°C)
Enhanced Weather Protection (EWP), EWP products are designed to meet IP66 Ingress Protection Rating, (see Vikings' support DOD 859)
